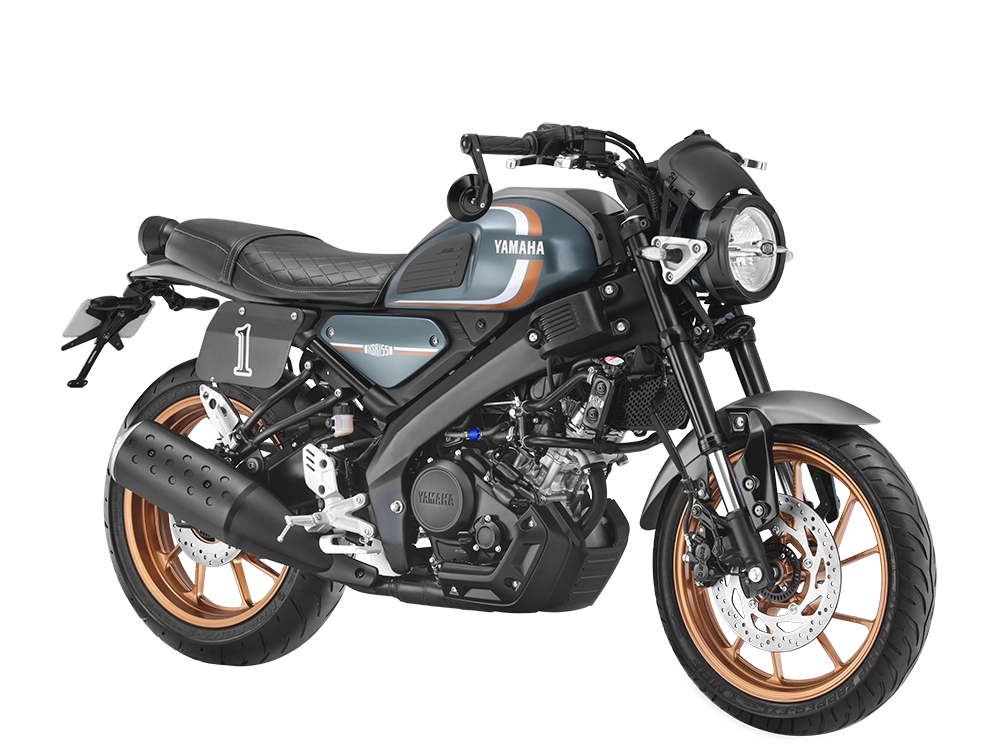

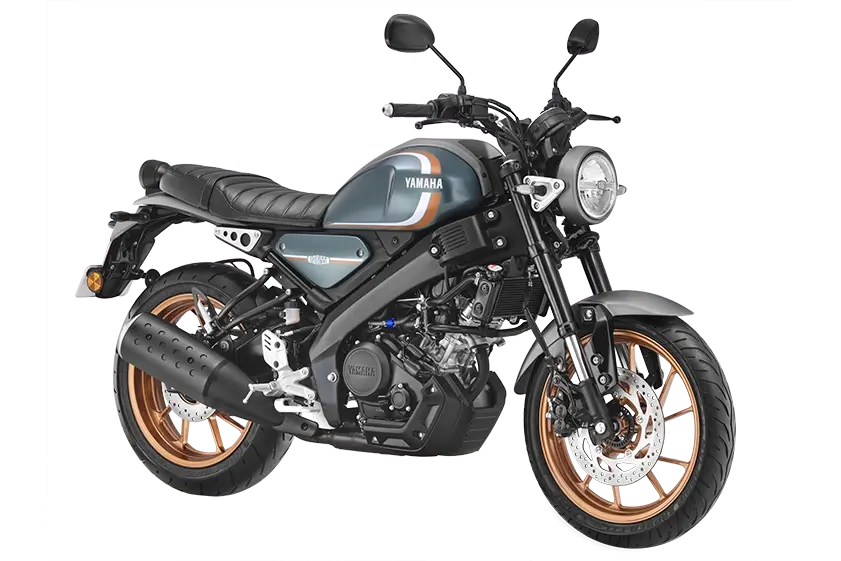

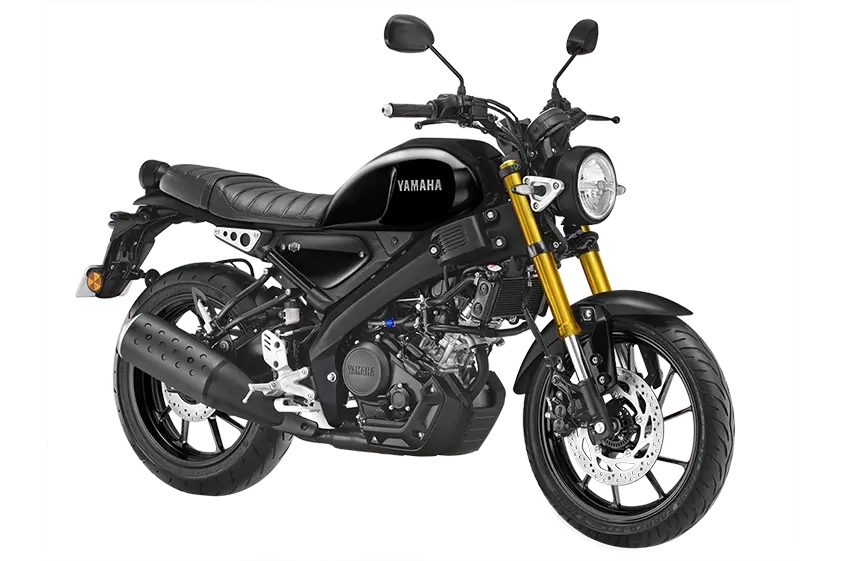

Yamaha XSR 155
MAKE: Yamaha XSR 155
STOCK STATUS: Expected
FUEL: Petrol
Booking Price
₹5,000.00
Specifications
| Engine Type | Liquid-cooled, 4-stroke, SOHC, 4-valve |
| Displacement | 155 cc |
| Bore & Stroke | 58.0 mm × 58.7 mm |
| Compression Ratio | 11.6 : 1 |
| Maximum Horse Power | 13.5kW(18.4PS)/10000r/min |
| E20 Compatible | Yes |
| Starting system type | Electric starter |
| Maximum torque | 14.2N.m(1.4kgf.m)/7500r/min |
| Fuel System | Fuel injection |
| Lubrication system | Wet sump |
| Clutch Type | Wet, Multiple Disc |
| Overall Length X Width X Height | 2005mmX 805mm X 1,080mm |
| Minimum ground clearance | 120 mm |
| Kerb Weight (with oil and full fuel tank) | 137 kg |
| Seat height | 810mm/td> |
| Inner tube diameter of front fork | 37.0mm |
| Wheelbase | 1,325 mm |
| Fuel tank capacity | Fuel tank capacity 10 L |
| Frame type | Deltabox |
| Front suspension system | Telescopic fork |
| Rear suspension system | Swingarm (link suspension) |
| Brake type (Front) | Disc brake (282 mm) |
| Brake type (Rear) | Disc brake (220 mm) |
| Tyre size (front) | 100/80-17M/C 52P - Tubeless |
| Tyre size (rear) | 140/70R-17M/C 66H - Tubeless |
| ABS | Dual Channel |
| Battery | 12V,3.0Ah(10HR) |
| Headlight | LED |
| Brake/tail light | LED |
| Speedometer | Digital |
| Tachometer | Digital |
| Fuel gauge | Digital |
| Fuel consumption indicator | Equipped |
| Equipped | Equipped |
| Y-Connect (Smartphone Bluetooth Connectivity) | Eqipped |
| Traction control system | Eqipped |
Customization Kits
Performance
155CC LC 4V Fi ENGINE
155cc Liquid cooled, 4-stroke, SOHC, 4 Valve powerplant with Fuel Injection and VVA gives you exceptional performance capability.
Traction Control System
Variable Valve Actuation

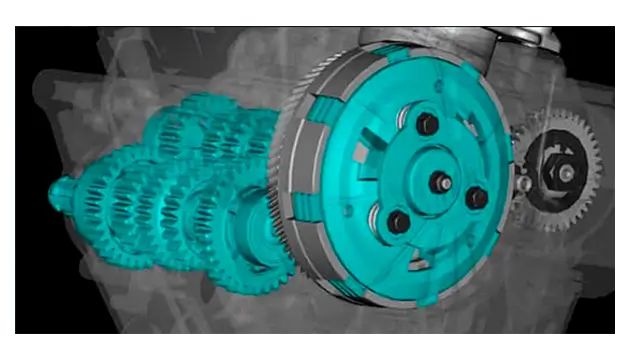

Assist & Slipper Clutch

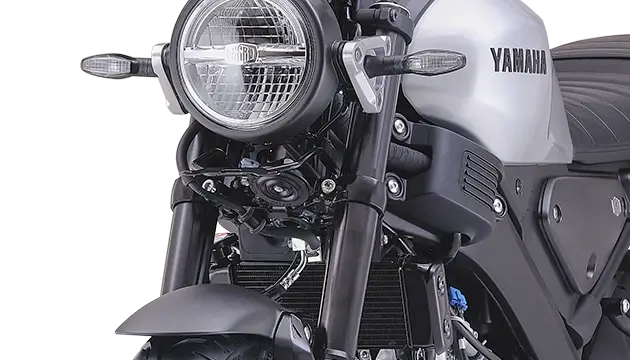

Upside Down Front Forks

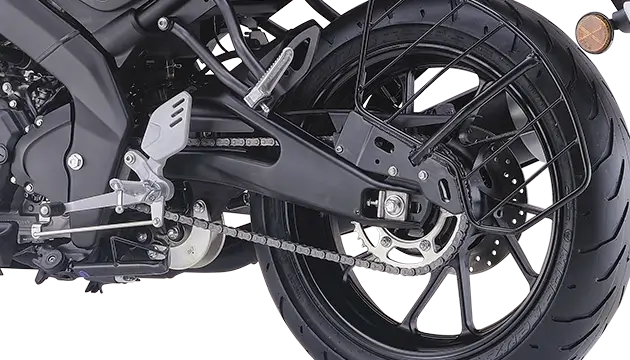

Alumlnium Swingarm
Comfort

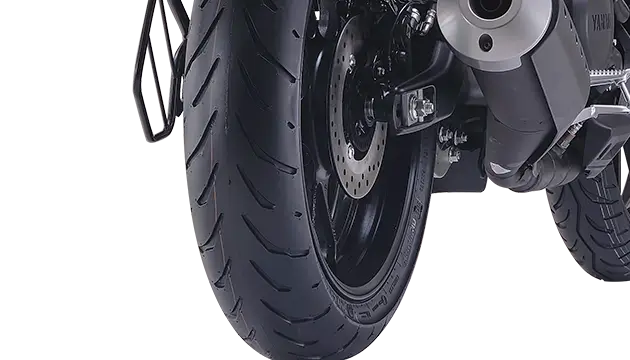

Super Wide 140 MM Radial Rear Tyre
Experience better grip and shock absorption

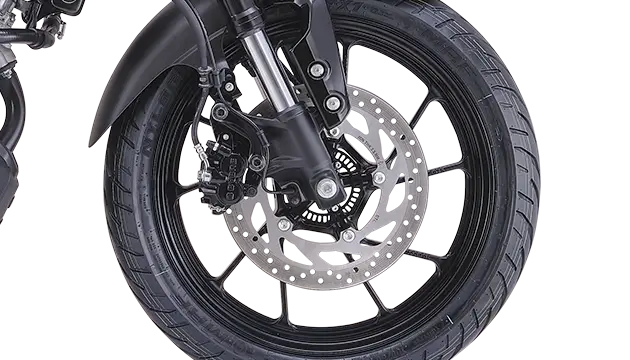

Disc Brakes With Dual Channel ABS
The XSR 155 creates great performance and enables more control with 282 mm front and 220 mm rear Disc Brakes with Dual Channel ABS. Precise braking. Limited wheel lockups at high speeds. A more confident ride for you!
Features

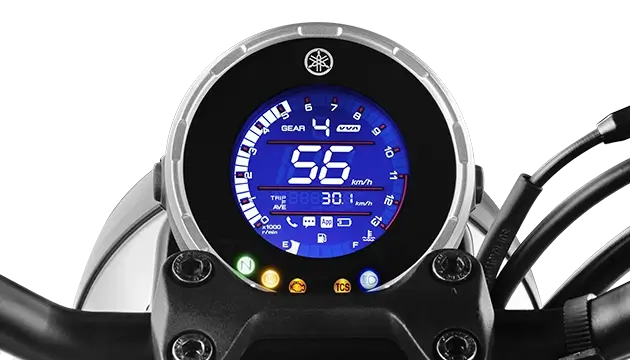

Round LCD Meter
The LCD console features an authentic retro style combined with contemporary technology. The easy-to-read panel includes a gear positioning indicator.
Y-Connect
E20 Fuel Compatible
E20 Fuel reduce the emissions and is wonderful option for cutting down on pollution. As part of our carbon reduction commitments, We have updated the FZ series to be compatible with E20 Fuel.

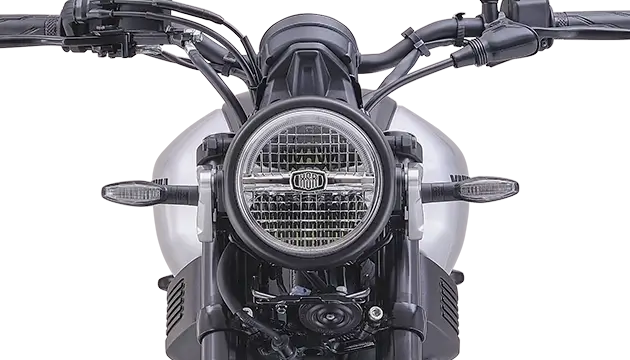

LED Headlight and Tail Light
The round LED headlight and round Tail light combine the simple, compact and authentic design of the XSR series.

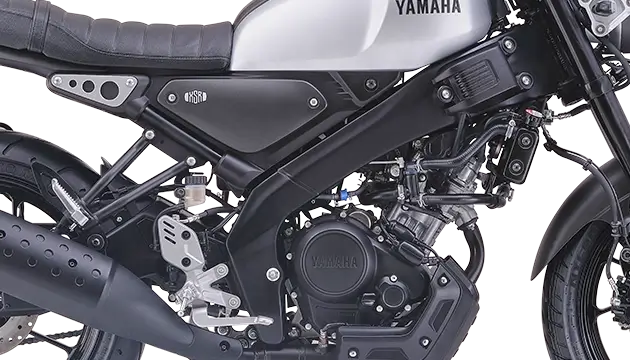

Deltabox Frame
Achieves excellent torsional rigidity by making the lines connecting the top and bottom of the head pipe to the rear swing arm pivot as straight as possible.
Design

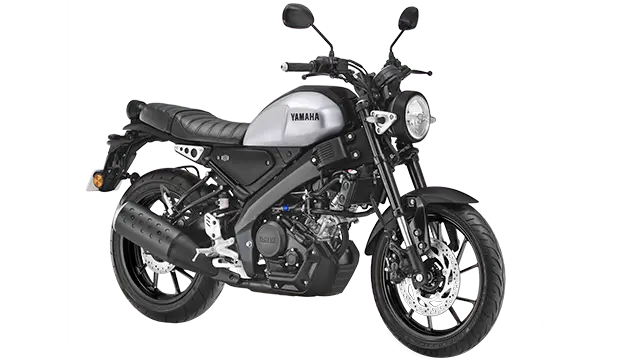

Retro Styled Body Design
A blend of heritage and agility, the sleek body design offers effortless maneuverability with a confident, muscular stance — built for riders who value control and character.

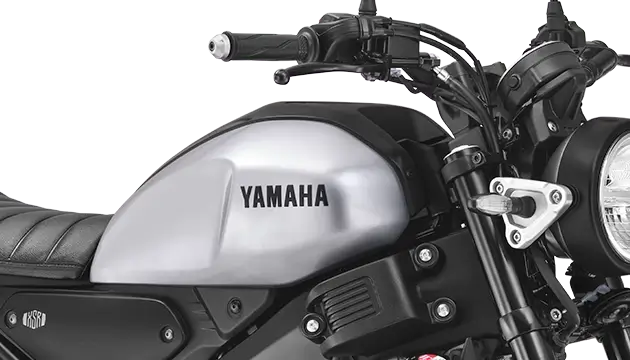

Tank Design
Timeless and refined, the sculpted 10-litre tank combines vintage form with modern craftsmanship. Its compact yet purposeful design reflects Yamaha’s enduring legacy of style.

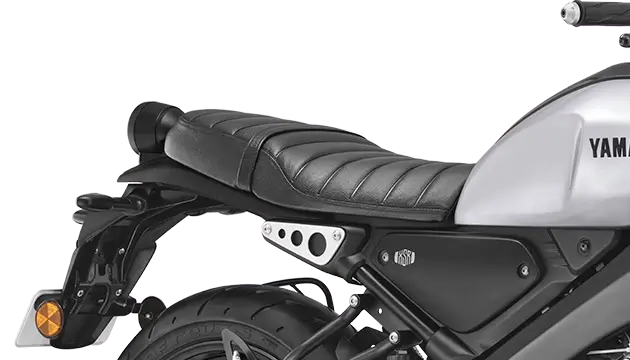

Tuck and Roll Seat
A classically styled seat design gives you freedom of riding position and ease of getting on and off the machine.
Round LED Tail Light With LED Flashers
Stand out on the road with the Rounded LED Tail light. Its sleek design demands attention wherever you ride.
Design
Call, SMS, Email Alerts
Stay connected with call, SMS, and email alerts on your instrument cluster screen, keeping you informed on the go.

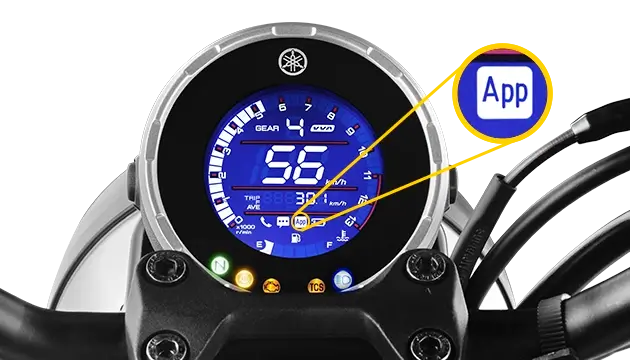

App Connectivity Status
Keep tabs on whether your bike is connected to the Y-Connect app on your phone.

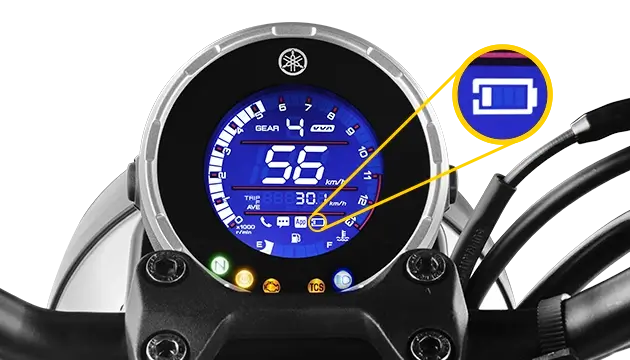

Phone Battery Level Status
Never be in the dark about your phone's battery – check it right on your bike.
Fuel Consumption Tracker
Keep an eye on how much fuel you're burning through each day and month.

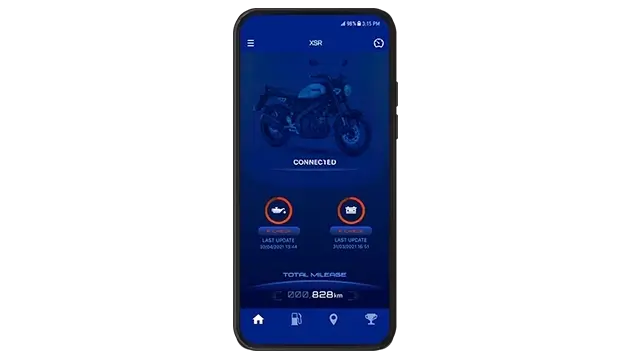

Maintenance Recommendations
Get smart advice based on your bike's data, like when it's time to give your battery a check.

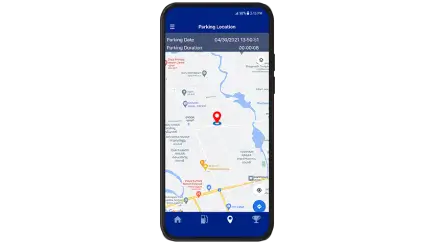

Last Parking Location
Find out where you left your ride last – it's like a built-in memory for your bike. But remember, if the machine has moved since it was parked, it won’t be tracked.

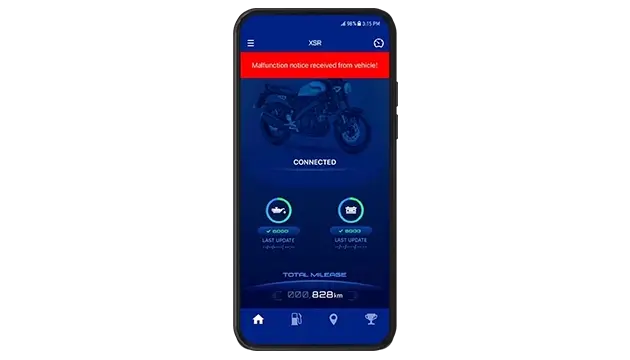

Malfunction Notification
Get a heads-up if your bike's acting up, so you can sort it out quickly.

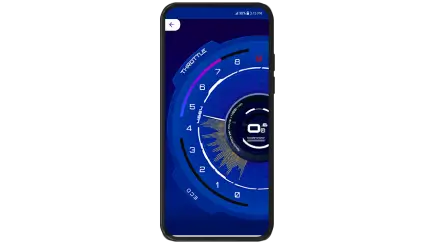

REVs Dashboard
See what's going on underneath with real-time stats like Engine RPM and Eco-friendly Riding Indicator.

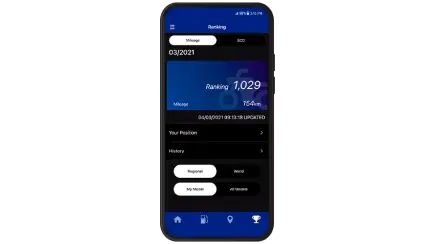

Ranking
Join the Yamaha riders and see how you measure up against others when it comes to racking up miles and being eco-friendly.
